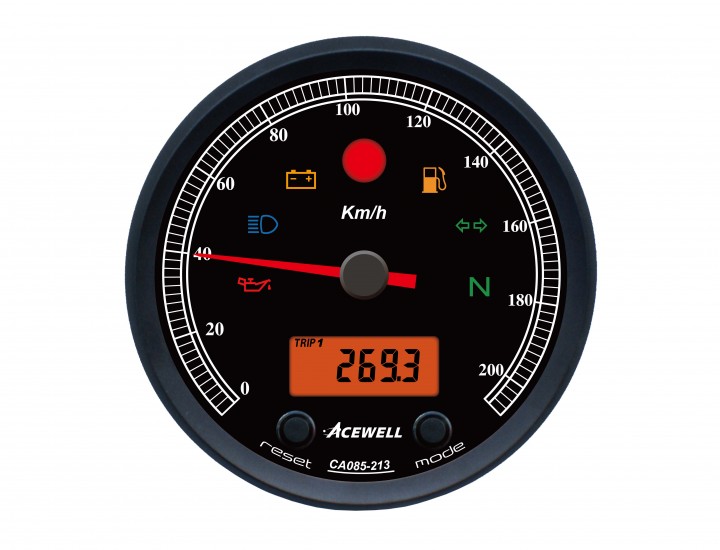

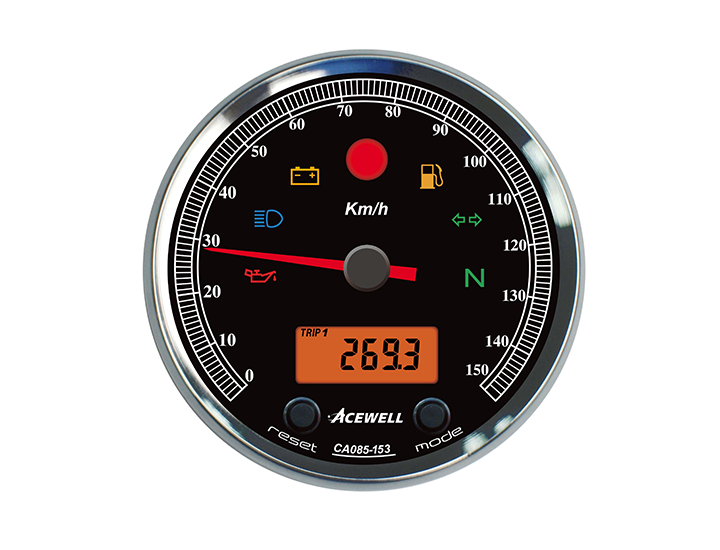

Classic Speedometer
With Digital LCD display, Needle for Speed or Tacho.
Key Features:
- Classic 80mm needle speedometer with multi-functional digital LCD display.
- Simultaneously displays needle speedometer, bar-temperature gauge, gear indicator, bar-fuel gauge and one of other functions.
- LCD shows digital functions of speedometer, tachometer, maximum RPM and SPD, average speed, trip meter 1/2,
odometer, riding time, total riding time, total hour meter, volt meter, temperature meter, and clock. - Upper case can be plastic or aluminum CNC case.
- Integrates 5 LED warning lamps with different symbols depending on model .
- Temperature meter can measure either engine or air temperature it dependent on which kind of sensor you are using. Engine temperature sensor is a standard parts of this unit.
- Built-in gear indicator which calculates gear by comparing speed and RPM, and “gear indicator off” mode for Automatic vehicles.
- Built-in backlight, on some models backlight can be switched on independently.
- Fast processor so can connect to pulse type gearbox speed sensors.
- Fuel gauge full and empty resistances are fully adjustable and it can connect to sender units with resistance range up to 990 ohms. In reserve mode, the fuel gauge is not displayed and fuel symbol lights when the input wire is connected to -ve. The gauge can be switched off entirely if not required.
- Flexible battery warning voltage setting from 11.0 to 15.0V.
- Allows end user to adjust odometer when the odometer is less than 30km / 18.6 miles.
- Universal wheel circumference setting range: 1-3999mm.
- Includes main unit, bracket, RPM sensing wire, hall or reed speed sensor, fitting kits, wiring harness, and coolant temperature sensors.
- Excellent water resistant, anti-vibration structure and noise immunity design.
Specification:
- Dimension: ∅85mm x 56.1mm
- Certificate: E mark, CE, TS16949
- Waterproof: IP X7
- Color: Panel Black/White, Upper case Chrome/Anodizing/Plating
