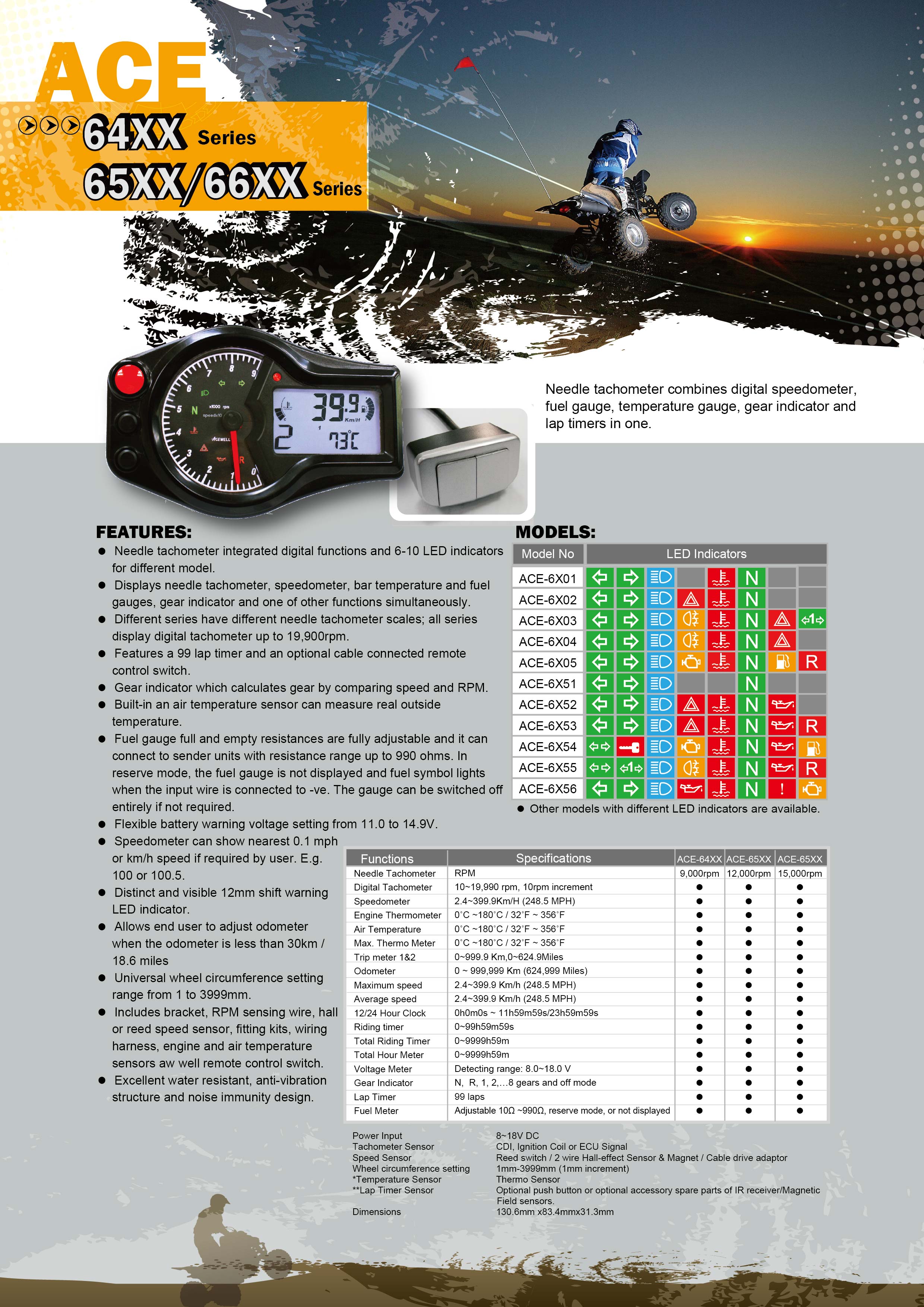

Multi functon speedometer, with needle for RPM
Needle tachometer combines digital speedometer, fuel gauge, temperature gauge, gear indicator and lap timers, multi-function in one.
Key Features:
- Needle tachometer integrated digital functio
- ns and 6-10 LED indicators for different model.
- Displays needle tachometer, speedometer, bar temperature and fuel gauges, gear indicator and one of other functions simultaneously.
- Different series have different needle tachometer scales; all series
display digital tachometer up to 19,900rpm.Features a 99 lap timer and an optional cable connected remote control switch.Gear indicator which calculates gear by comparing speed and RPM. - Built-in an air temperature sensor can measure real outside
temperature. - Fuel gauge full and empty resistances are fully adjustable and it can connect to sender units with resistance range up to 990 ohms. In reserve mode, the fuel gauge is not displayed and fuel symbol lights when the input wire is connected to -ve. The gauge can be switched off entirely if not required.
- Flexible battery warning voltage setting from 11.0 to 14.9V.
- Speedometer can show nearest 0.1 mph or km/h speed if required by user. E.g.100 or 100.5.
- Distinct and visible 12mm shift warning LED indicator.
- Allows end user to adjust odometer when the odometer is less than 30km / 18.6 miles
- Universal wheel circumference setting range from 1 to 3999mm.
- Includes bracket, RPM sensing wire, hall or reed speed sensor, fitting kits, wiring harness, engine and air temperature sensors as well remote control switch.
- Excellent water resistant, anti-vibration structure and noise immunity design.
Specification:
- Dimension: 130.6mm x 83.4mm x 31.3mm
- Certificate: E-mark, CE, TS16949
- Waterproof: IP X7
- Color available: BK
