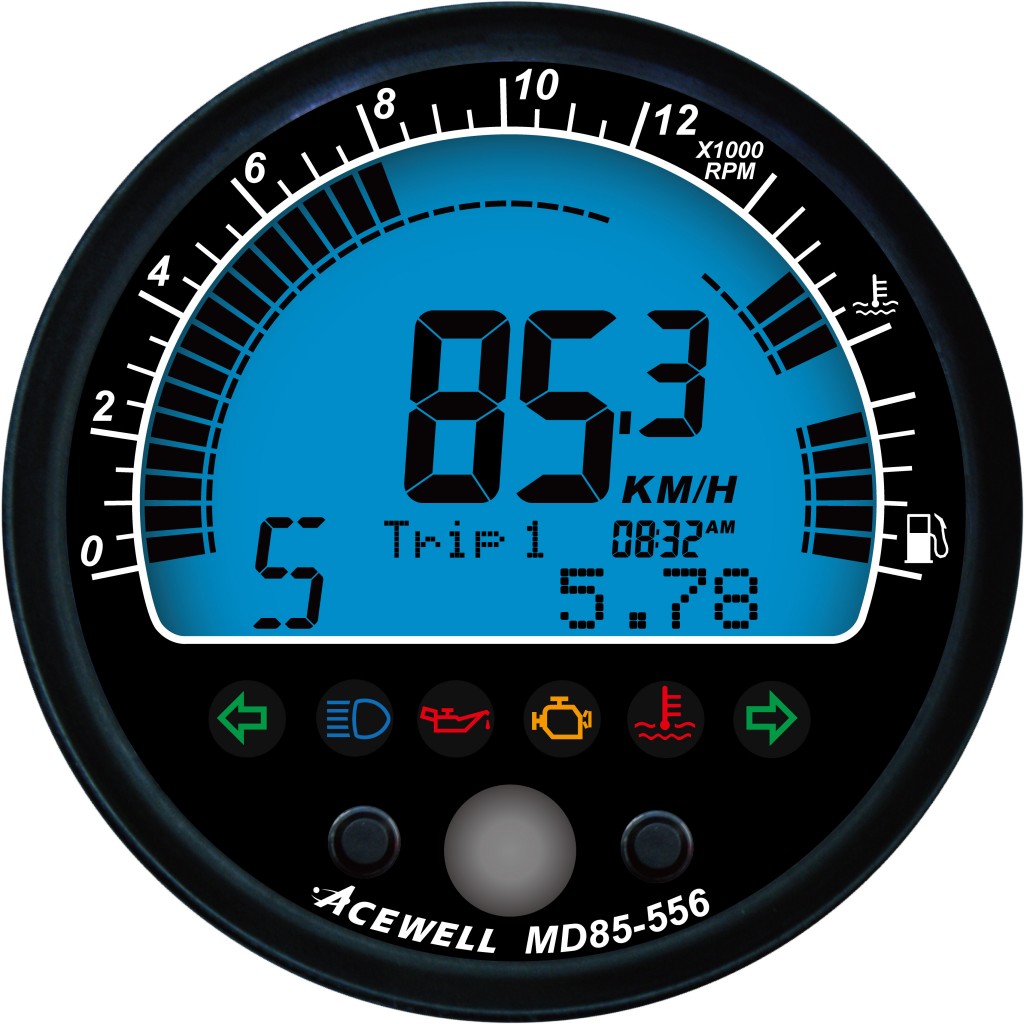

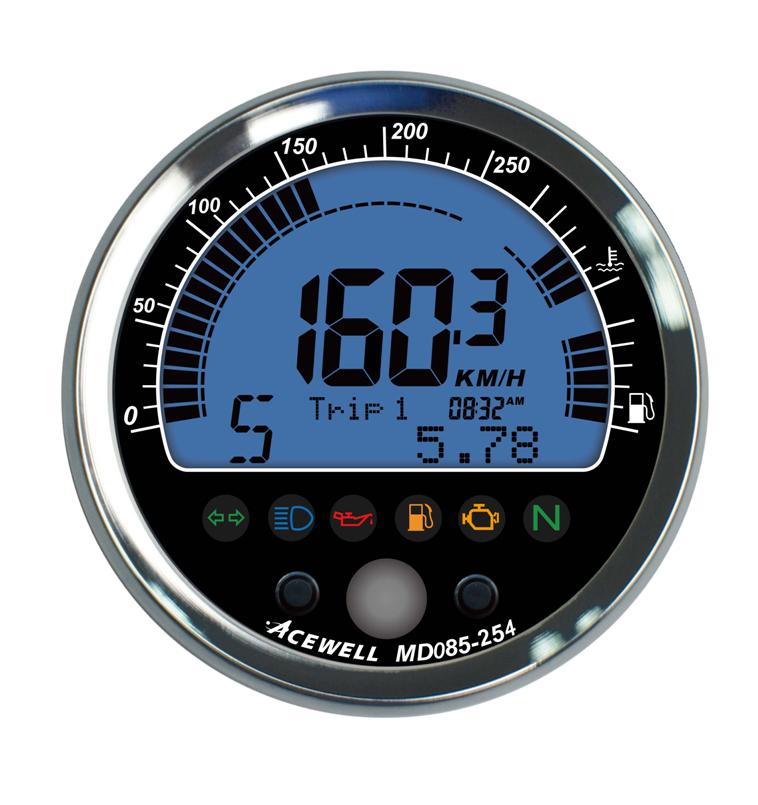

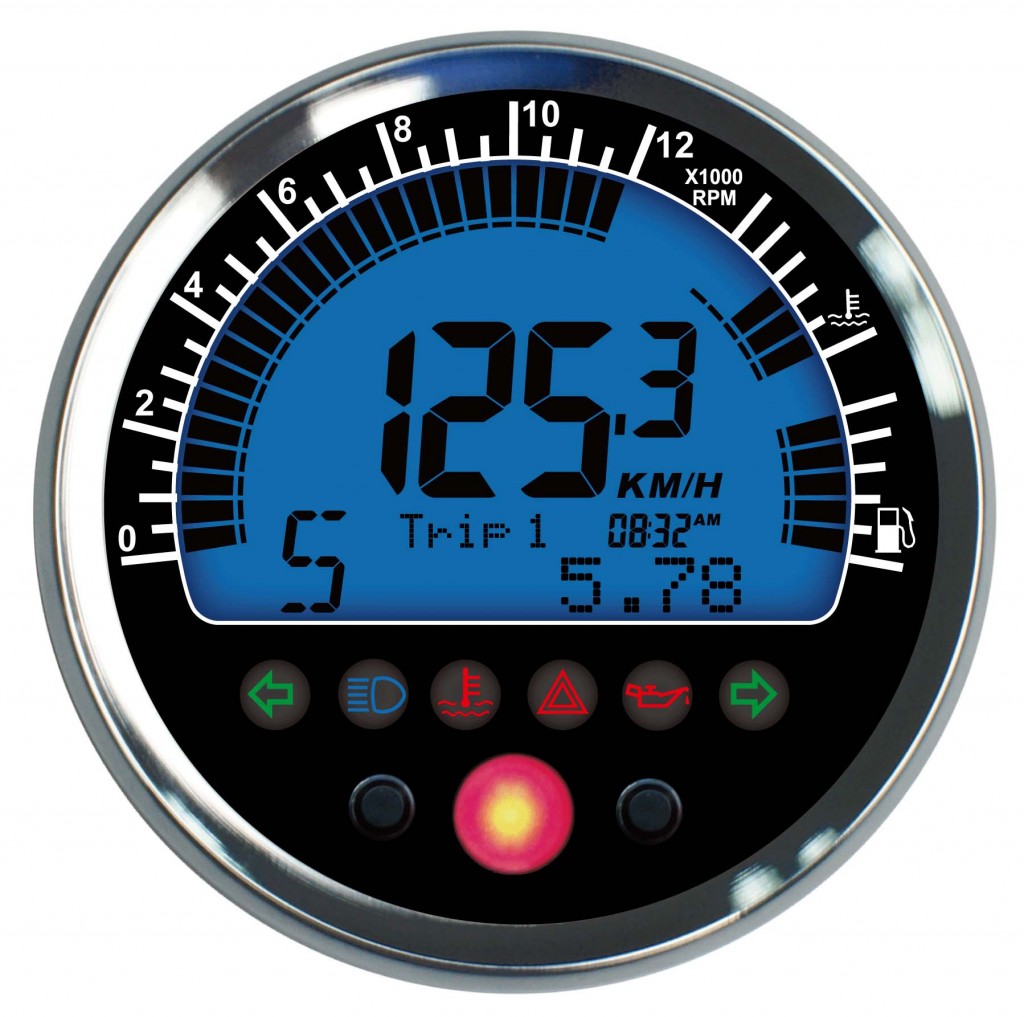

Digital LCD Display Multi-function Speedometer
With Large Digital LCD display, Bar-graphic for fuel gauge and speedo.
Key Features:
- Simultaneously displays Bar-speedometer, speedometer, gear indicator, Bar-fuel gauge, bar-graph temperature meter by 7 segments, and dot matrix display clock as well one of the other functions.
- Optional main unit with Aluminum forging CNC upper ring.
- Built-in 4-6 LED indicators plus one distinct and visible 12mm shift warning indicator for different applications.
- Built-in gear indicator which calculates gear comparing speed and RPM, and “gear indicator off” mode for Automatic vehicles.
- Built-in RGB LED backlight, user can adjust his/her prefer backlight color.
- On some models the backlight can be controlled separately from the ignition power. Bar-graph tachometer has scale of 12,000rpm, digital tachometer is up to 1 9,900rpm.
- End user is able to adjust odometer when the odometer is less than 30km /18.6 miles.
- Acceleration and deceleration timers as well as distance timer for racing practice.
- External air temperature sensor. Fast processor so can connect to pulse type gearbox speed sensors.
- Universal wheel circumference setting range: 1-3999mm.
- Fuel gauge includes +/- 30∼80Ω, 100Ω, 250Ω and 510Ω options for fuel sender input resistance. In reserve mode, the fuel gauge is
not displayed and fuel symbol lights when the input wire is connected to -ve. The gauge can be switched off entirely if not required. - Flexible battery warning voltage setting from 11.0 to 14.9V.
Speedometer can show nearest 0.1 mph or km/h speed if required by user. E.g. 100 or 100.5 - Includes bracket, RPM sensing wire, speed sensor, PT1/8 temperature sensor, air temperature sensor, main unit sleeve &
mounting bracket, fitting kits and wiring harness. - Excellent water resistance, anti-vibration structure and noise immunity design.
Specification:
- Dimension: ∅85mm x 56.1mm
- Certificate: E mark, CE
- Waterproof: IP X7
- Color: Panel Black/White, Upper case Chrome/Anodizing/Plating
