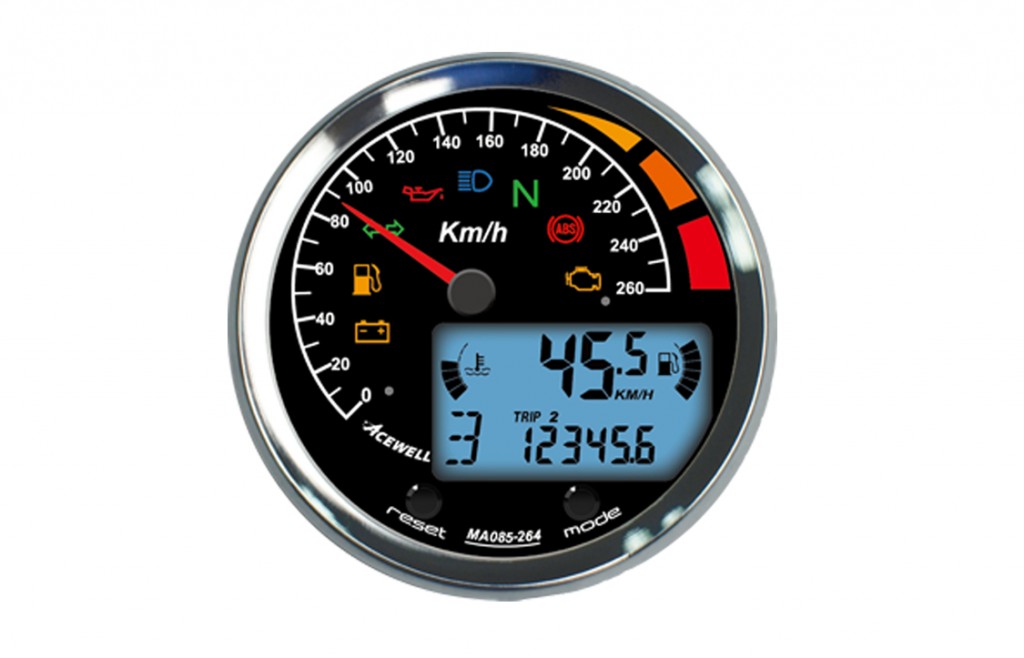

Multi-function Speedometer
With Digital LCD display, Needle for Speedo.
Key Features:
- Simultaneously displays needle speedometer, tachometer, coolant temperature, gear indicator, fuel gauge and one of other functions.
- Integrates 5-8 LED warning lamps with different symbols depending on model.
- Distinct and visible 3 shift warning LED indicators.
- Built-in RGB LED backlight, user can adjust his/her prefer backlight color. Backlight can be switched on independently.
Built-in gear indicator which calculates gear by comparing speed and RPM, and “gear indicator off” mode for Automatic vehicles. - Built-in an air temperature sensor can measure real outside temperature.
- Fast processor so can connect to pulse type gearbox speed sensors.
- Fuel gauge full and empty resistances are fully adjustable and it can connect to sender units with resistance range up to 990 ohms. In reserve mode, the fuel gauge is not displayed and fuel symbol lights when the input wire is connected to -ve. The gauge can be switched off entirely if not required.
- Flexible battery warning voltage setting from 11.0 to 15.0V.
- Speedometer can show nearest 0.1 mph or km/h speed if required by user. E.g. 100 or 100.5.
- Allows end user to adjust odometer when the odometer is less than 30km / 18.6 miles.
- Universal wheel circumference setting range: 1-3999mm.
- Includes main unit, bracket, RPM sensing wire, hall or reed speed sensor, fitting kits, wiring harness, sleeve of main unit, air and
coolant temperature sensors. - Excellent water resistant, anti-vibration structure and noise immunity design.

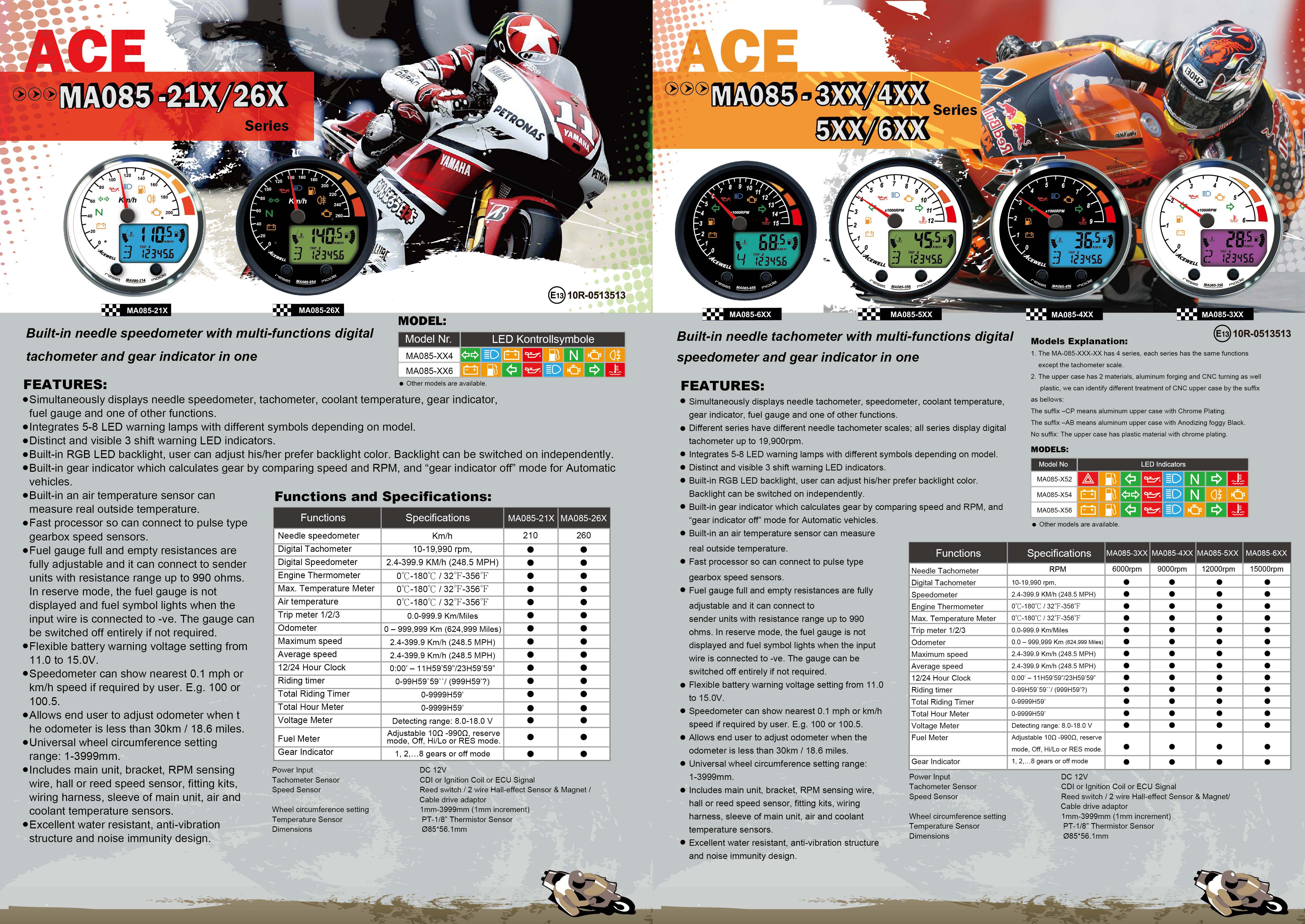

Specification:
- Dimension: ∅85mm x 56.1mm
- Certificate: E mark, CE
- Waterproof: IP X7

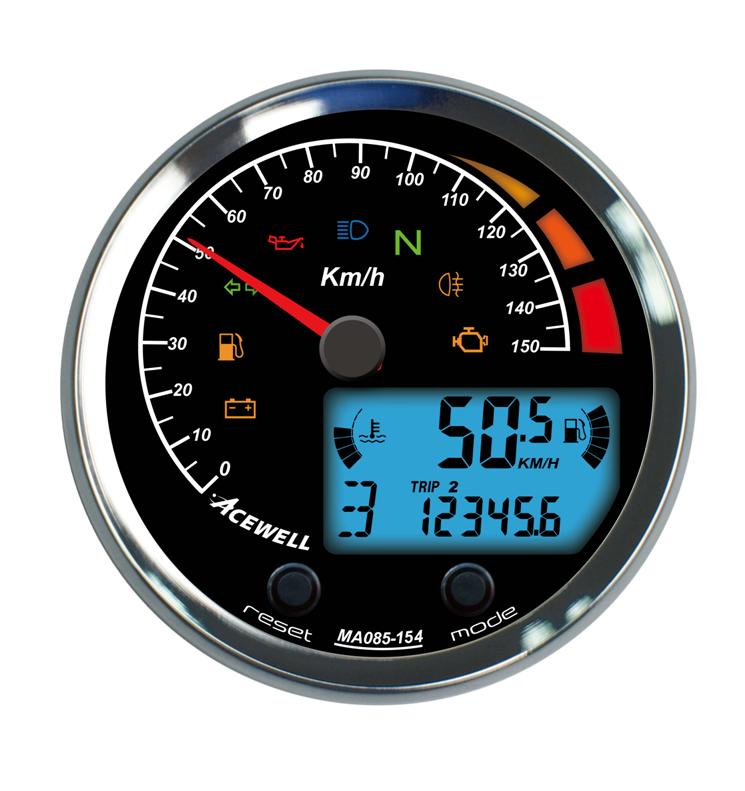

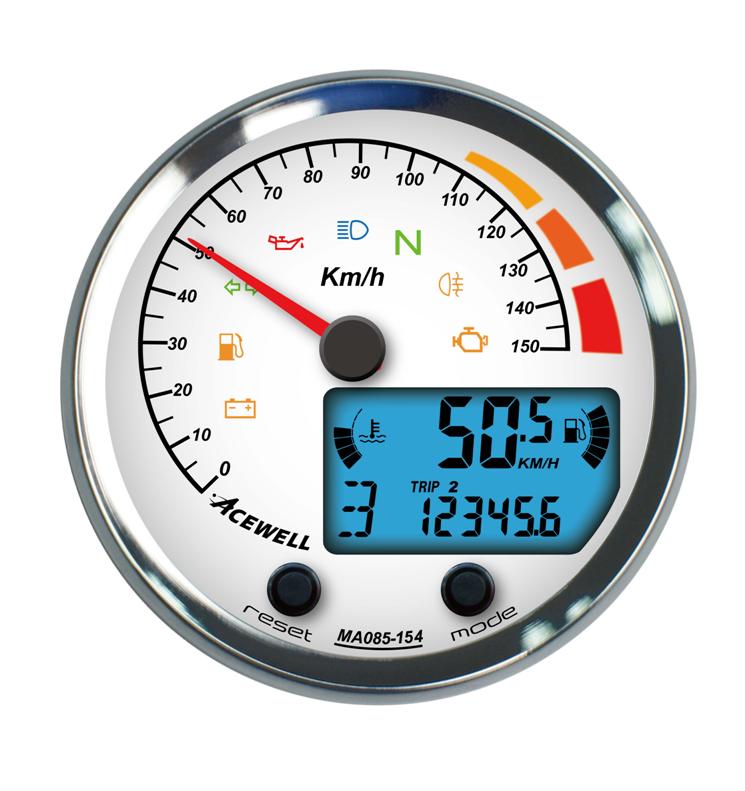

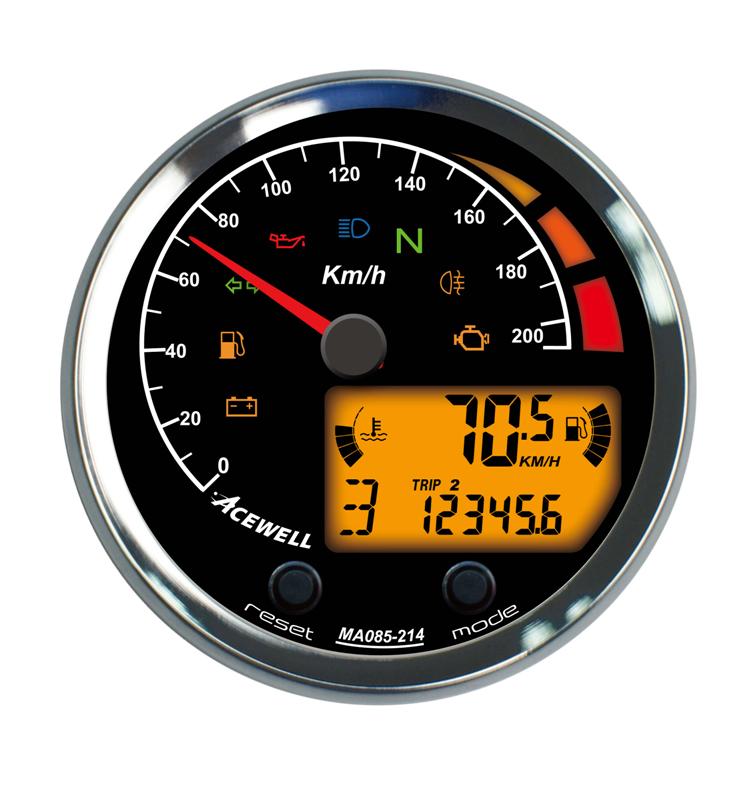

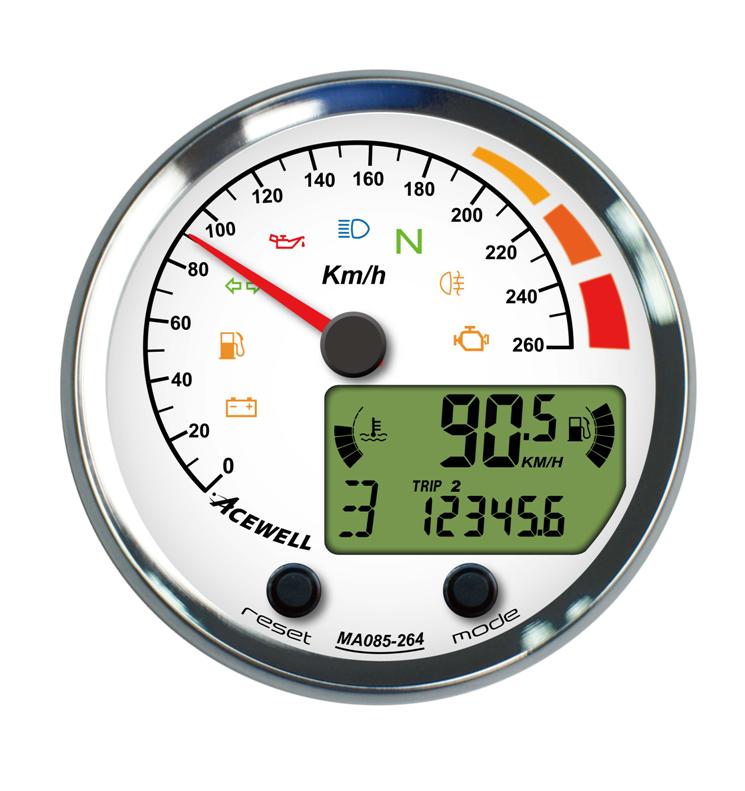

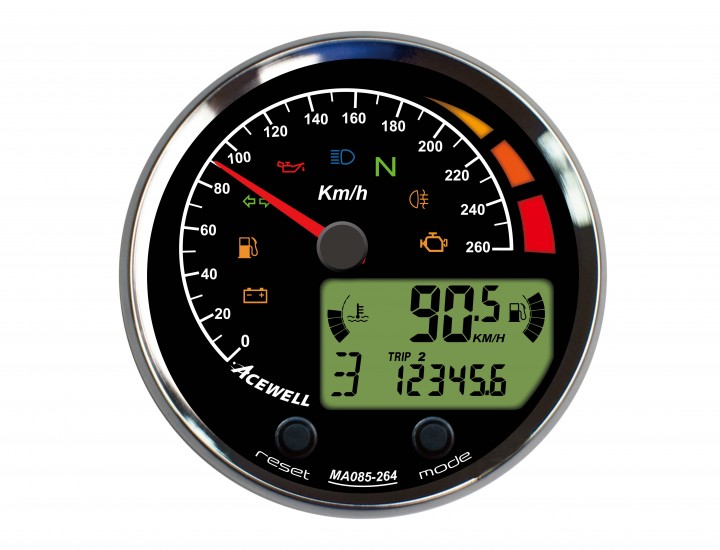

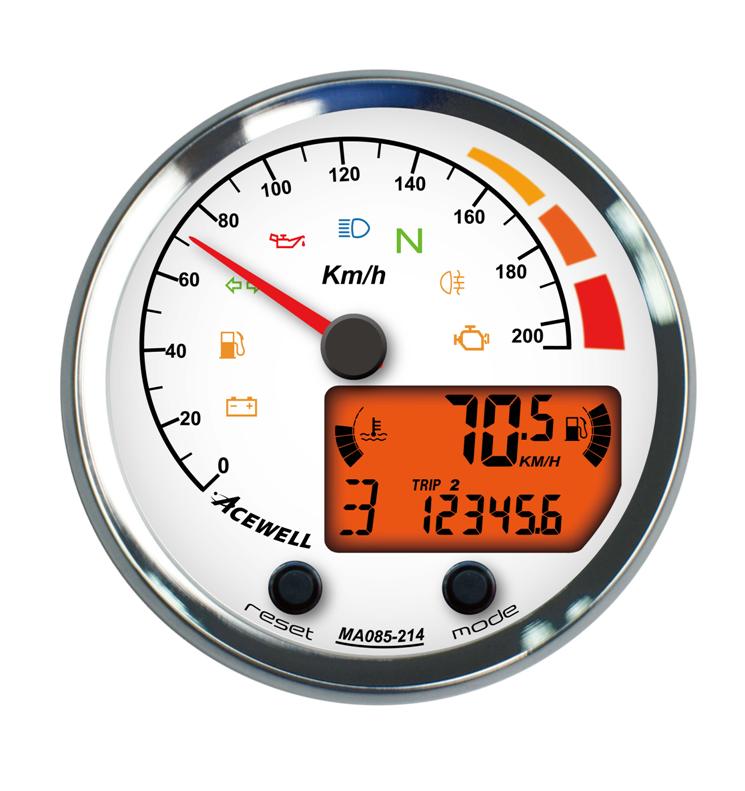

- Color: Panel Black/White, Upper case Chrome/Anodizing/Plating
