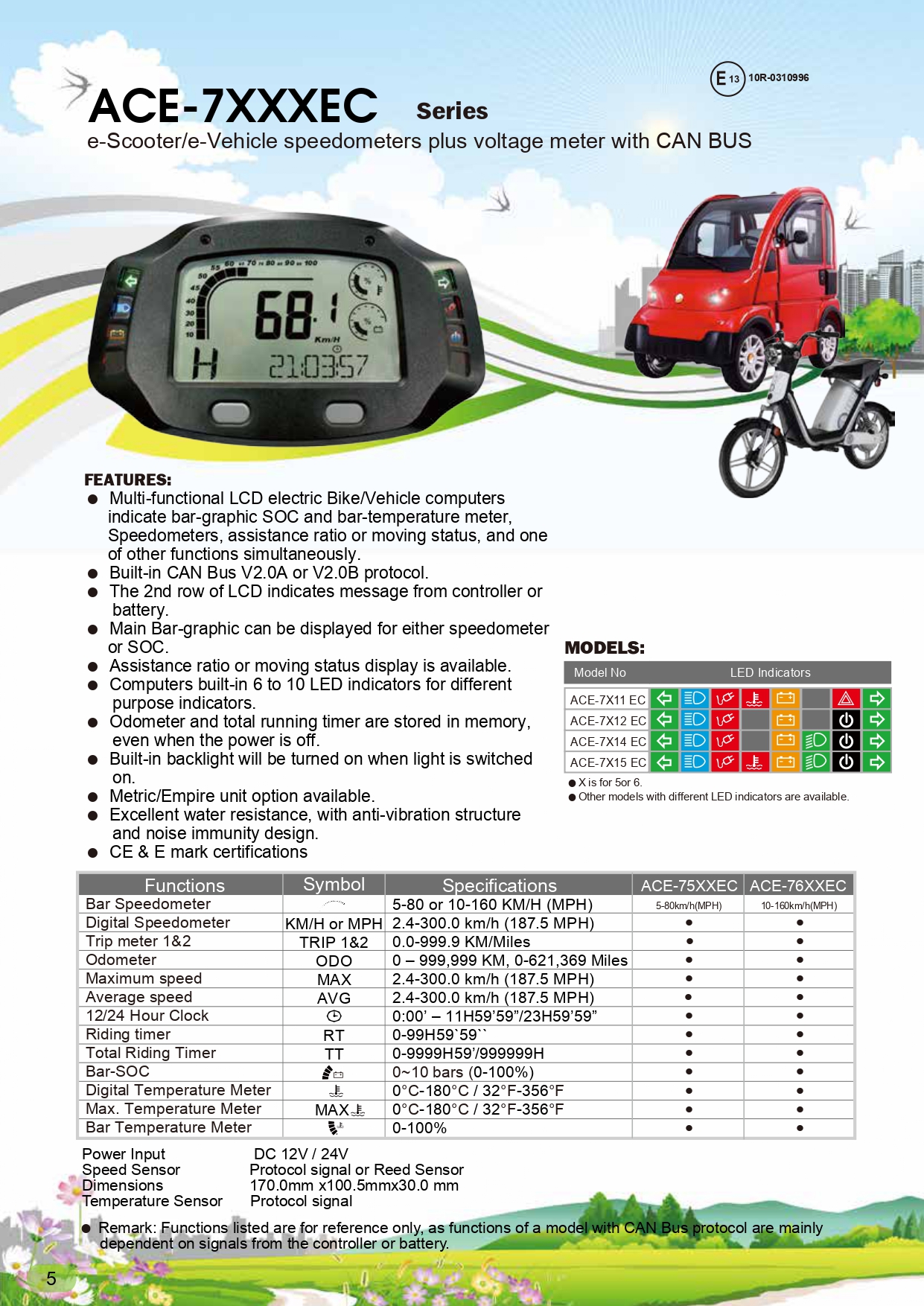

Digital LCD Display for Multi-function EV/LEV Speedometer
Digital LCD display, for digital system (CANBUS), Bar-graphic for temp. and volt meter or SOC of battery.
Key Features:
- Multi-functional LCD electric Bike/Vehicle computers indicate bar-graphic SOC and bar-temperature meter, Speedometers, assistance ratio or moving status, and one of other functions simultaneously.
- Built-in CAN Bus V2.0A or V2.0B protocol.
- The 2nd row of LCD indicates message from controller or battery.
- Main Bar-graphic can be displayed for either speedometer
or SOC. - Assistance ratio or moving status display is available.
- Computers built-in 6 to 10 LED indicators for different purpose indicators.
- Odometer and total running timer are stored in memory, even when the power is off.
- Built-in backlight will be turned on when light is switched on.
- Metric/Empire unit option available.
- Excellent water resistance, with anti-vibration structure and noise immunity design
Specification:
- Dimension: 170.0 mm x 100.5 mm x 30.0mm
- Certificate: E mark, CE
- Waterproof: IP X7
- Color: BK
– Acewell ACE-7000 series waterproof disypaly at 2016 EV Taiwan –
