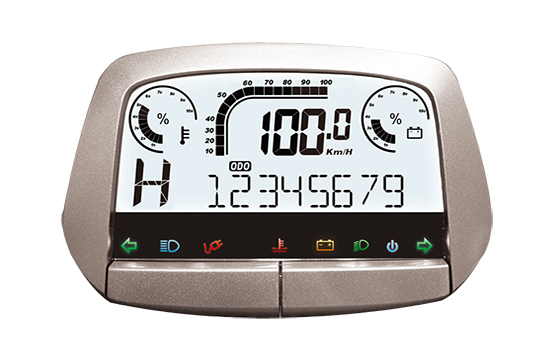

Digital LCD Display for Multi-function EV/LEV Speedometer
Digital LCD display, for digital system (CANBUS), Bar-graphic for temp. and volt meter or SOC of battery.
Key Features:
- Multi-functional LCD electric Bike/Vehicle computers indicate
bar-graphic SOC and battery temperature, Speedometers, gear
indicator/moving status and one of other functions simultaneously. - Built-in CAN bus V2.0A or V2.0B protocol.
- The 2nd row of LCD indicates message from controller or battery.
- Main Bar-graphic can be displayed for either speedometer or SOC.
- Assistance ratio or moving status display is available.
- Computers built-in 4 to 9 individual control LED indicators for different purpose indicators.
- Odometer and total running timer are stored in memory,even the
when power is off. - Built-in backlight will be turned on when light is switched on.
- Wide wheel circumference setting rang: 1-3999mm.
- Metric/Empire unit option available.
- Excellent water resistant, anti-vibration structure and noise
immunity design..
Specification:
- Dimension: 130.1 mm x 82.8 mm x 27mm
- Certificate: E mark, CE
- Waterproof: IP X7
- Color: BK/ SL
