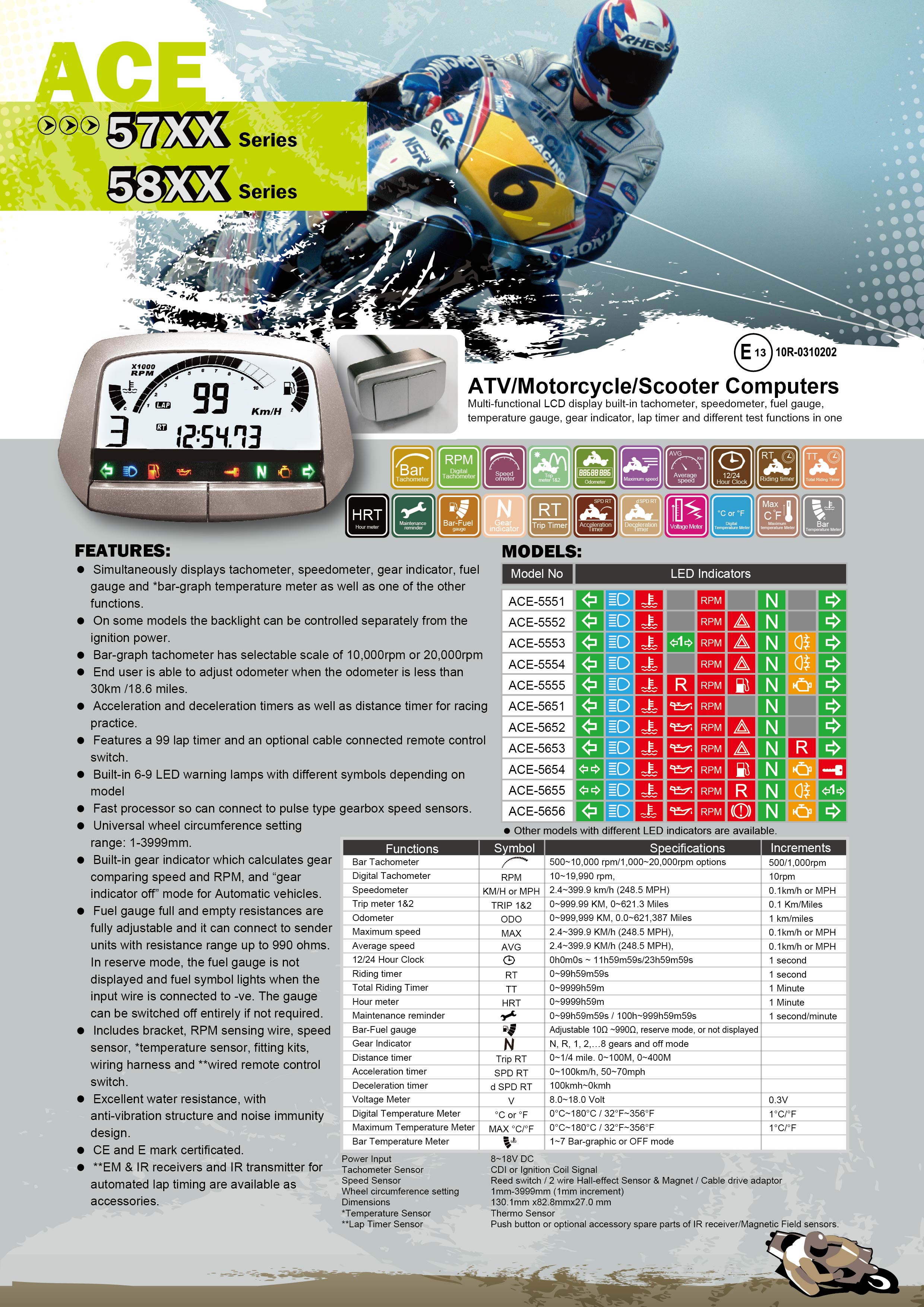

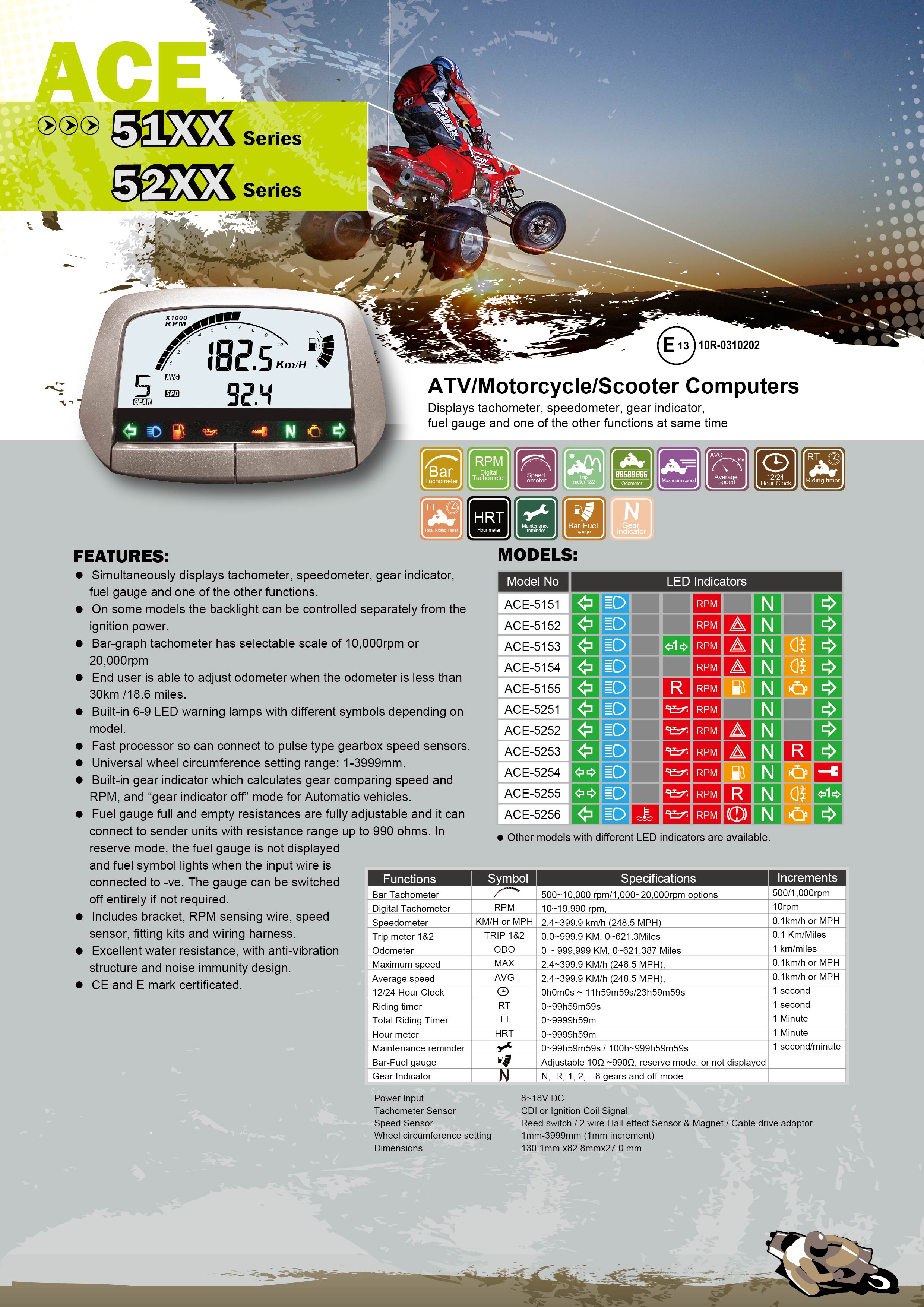

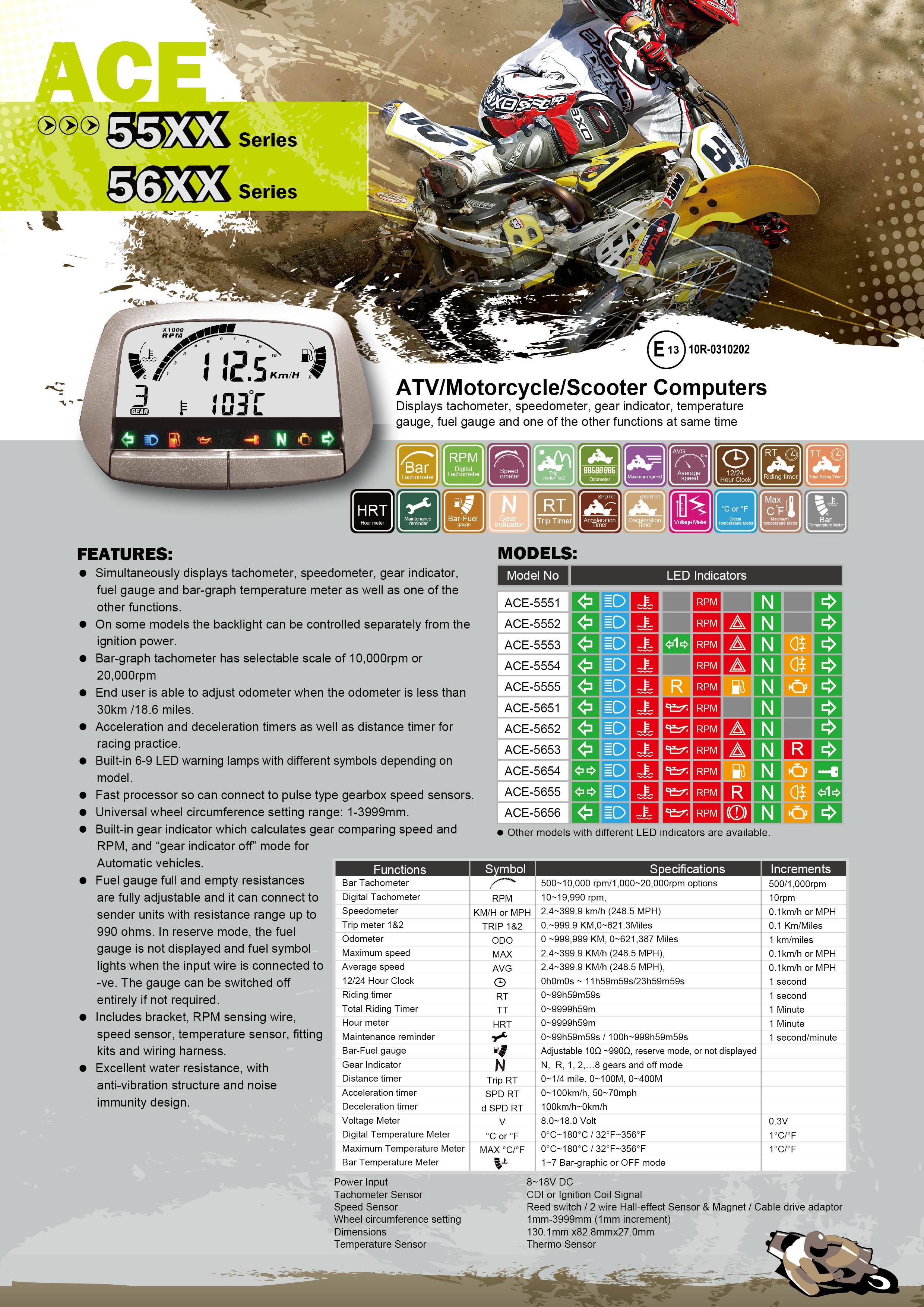

ACE-5000 ATV/Motorcycle /Scooter Computers

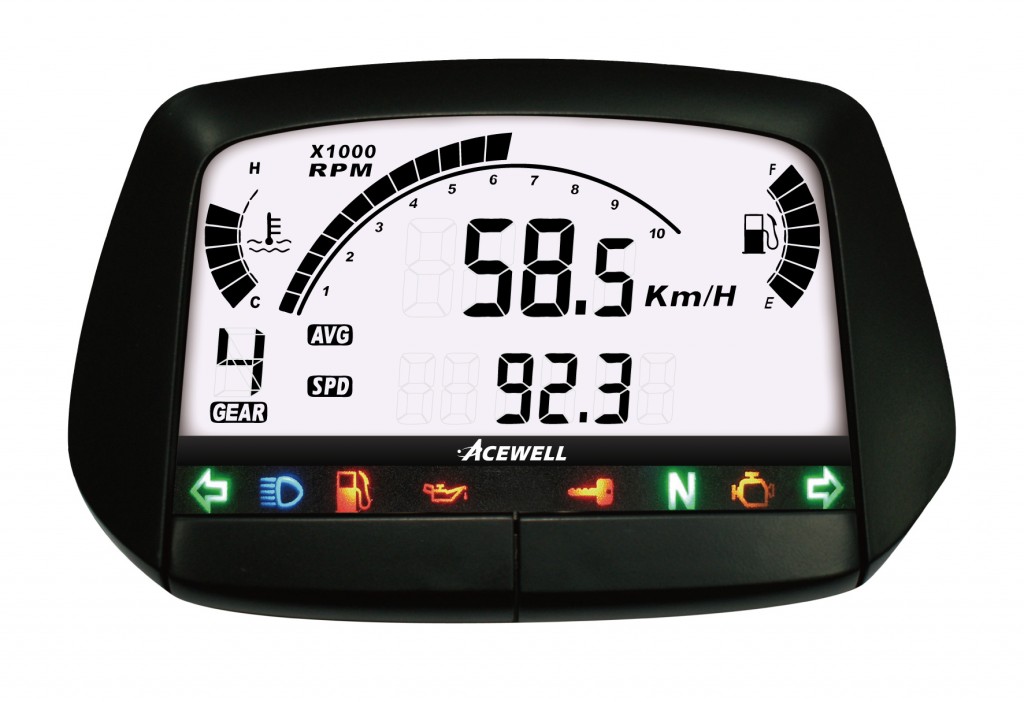

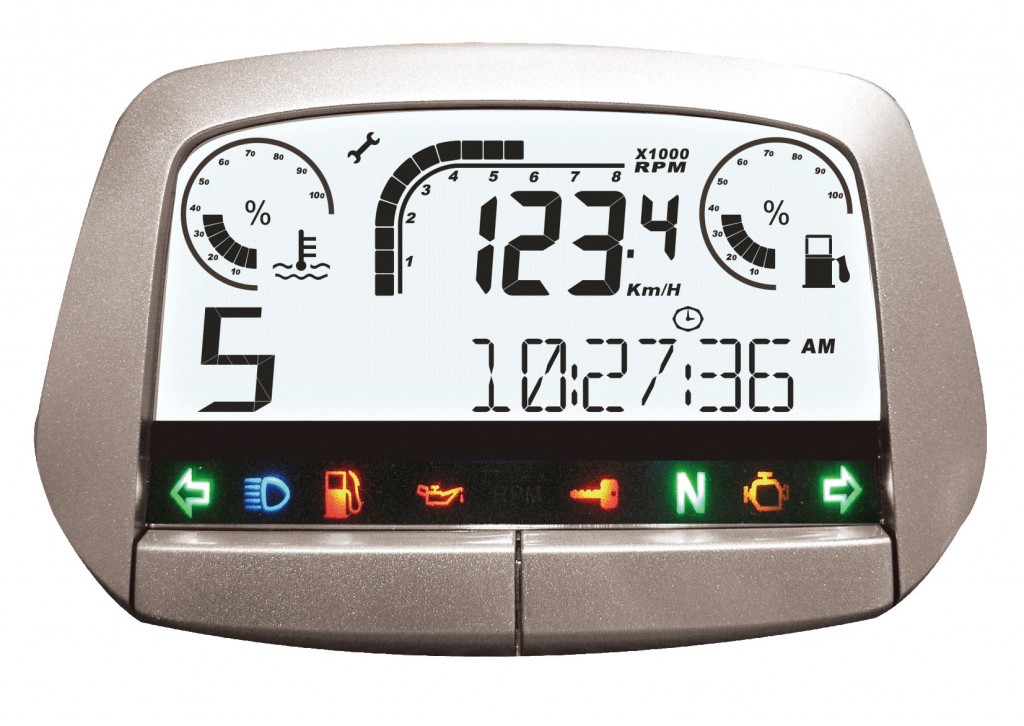

Displays tachometer, speedometer, gear indicator, temperature gauge, fuel gauge and one of the other functions at the same time.
Key Features:
- Simultaneously displays tachometer, speedometer, gear indicator,
fuel gauge and bar-graph temperature meter as well as one of the
other functions. - On some models the backlight can be controlled separately from the ignition power.
- Bar-graph tachometer has selectable scale of 10,000rpm or
20,000rpm - End user is able to adjust odometer when the odometer is less than
30km /18.6 miles. - Acceleration and deceleration timers as well as distance timer for
racing practice. - Built-in 6-9 LED warning lamps with different symbols depending on model.
- Fast processor so can connect to pulse type gearbox speed sensors.
- Universal wheel circumference setting range: 1-3999mm.
- Built-in gear indicator which calculates gear comparing speed and
RPM, and “gear indicator off” mode for Automatic vehicles. - Fuel gauge full and empty resistances are fully adjustable and it can connect to sender units with resistance range up to
990 ohms. In reserve mode, the fuel gauge is not displayed and fuel symbol lights when the input wire is connected to -ve. The gauge can be switched off entirely if not required. - Includes bracket, RPM sensing wire, speed sensor, temperature sensor, fitting kits and wiring harness.
- Excellent water resistance, with anti-vibration structure and noise
immunity design.
Specification:
- Dimension: 130.1 mm x 82.8 mm x 27mm
- Certificate: E mark, CE
- Waterproof: IP X7
- Color: BK / SL
