Digital LCD Display Multi-function Speedometer
Digital LCD display, with/without LED indicators, Bar-graphic for fuel gauge, temperature gauge and speedometer.
Key Features:
- Aluminum CNC main unit with built-in 4-6 LED indicators for different applications.
- Displays needle tachometer, speedometer, clock, Coolant or air temperature and fuel gauge plus additional function simultaneously.
- Different series have different needle tachometer scales; all series display digital tachometer up to 19,900rpm.
- User can adjust his/her prefer backlight color.
- Allows end user to adjust odometer when the odometer is less than 30km / 18.6 miles
- Fuel gauge includes +/-100, 250 and 510 Ohm options for fuel meter input resistance, as well as “fuel gauge off” mode.
- Universal wheel circumference setting range from 1 to 3999mm.
- Features a 99 lap timer and an optional cable connected remote control switch.
- Includes bracket, RPM sensing wire, hall or reed speed sensor, fitting kits, wiring harness, engine temperature sensor, air
temperature sensor and remote control switch. - Excellent water resistant, anti-vibratio
Specification:
- CNC housing Dimension: Ø 80 mm x 68 mm
- Certificate: E mark, CE
- Waterproof: IP X7
- Color:

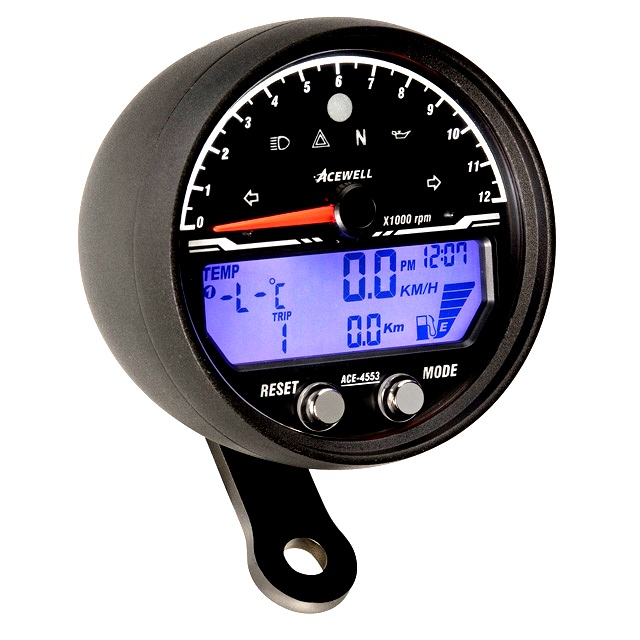

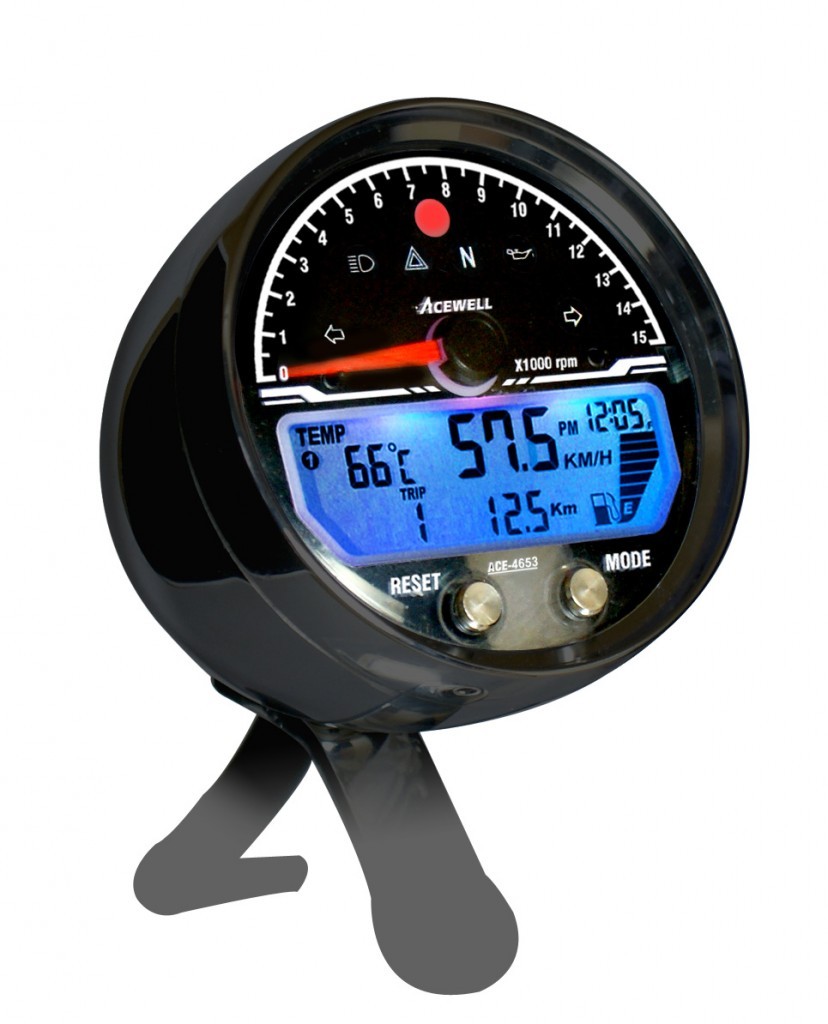

- AB: aluminum case with Anodizing Black foggy surface

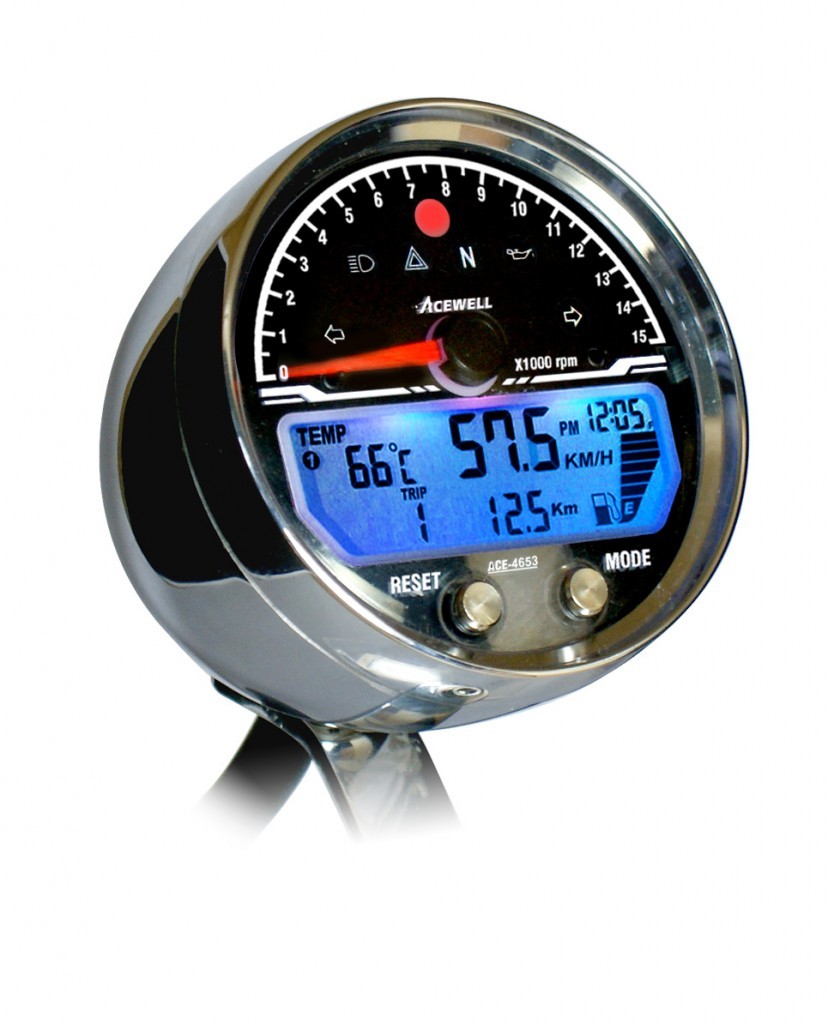

- CP: aluminum case with Chrome Plating surface
