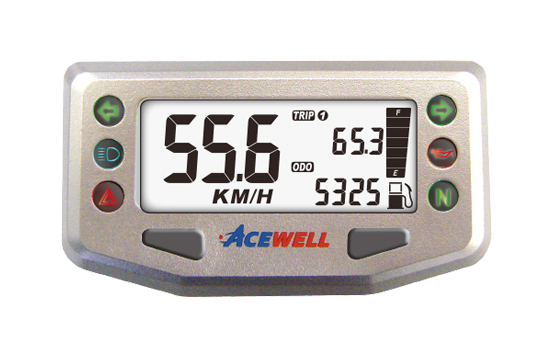

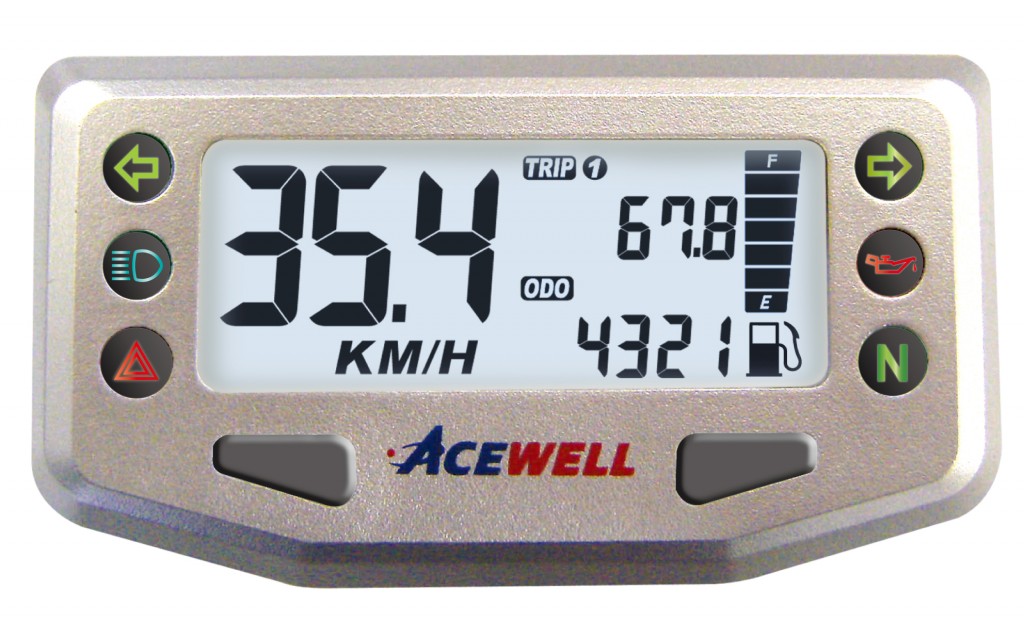

Digital LCD Display Multi-function Speedometer
Digital LCD display, with 6 (max.) LED indicators, Bar-graphic for fuel gauge.
Key Features:
- Displays speedometer, trip meter, odometer or optional fuel gauge simultaneously.
- Built-in 4-6 LED indicators for different applications and blue backlight.
- Odometer is always kept in memory.
- Metric/Empire unit options are available.
- Adjustable wide wheel circumference setting from 1 to 3999mm.
- Fuel gauge includes +/- 100, 250 and 510 Ohm options for fuel sender input resistance, as well as “fuel gauge off” mode.
- Includes bracket, speed sensor, fitting kits and wiring harness.
- Waterproof design and anti-vibration structure.
- CE and E mark certification
Specification:
- Dimension: 96.7 mm x 53.9 mm x 24.5mm
- Certificate: E mark, CE
- Waterproof: IP X7
- Color: BK / SL
